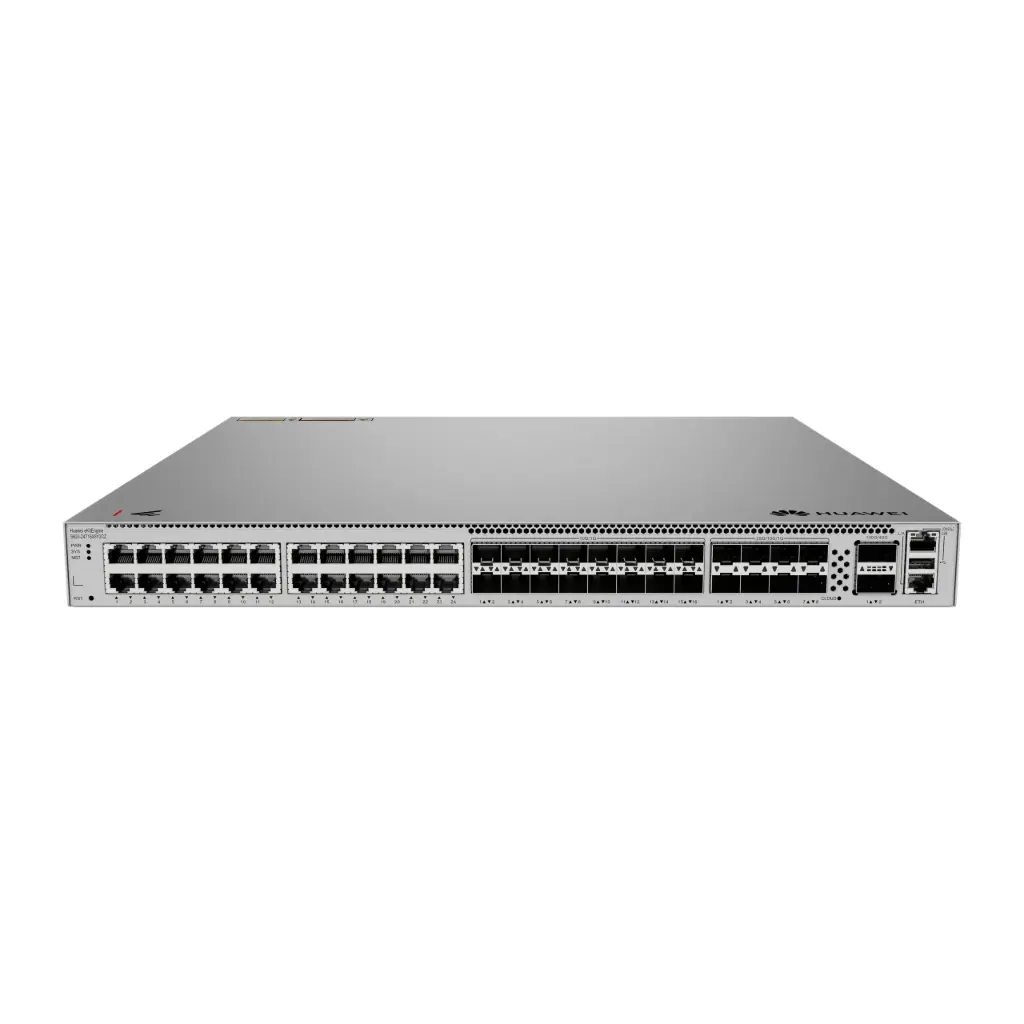

Huawei ekitEngine S620-24T16X8Y2CZ 24-Port 10/100/1000M, 16-Port 10GE SFP+, 8-Port 25GE SFP28, 2-Port 40GE/100GE QSFP28
S620-24T16X8Y2CZ
- 24 × 10/100/1000Base-T Ethernet ports (RJ45).
- 16 × 10GE SFP+ ports (supporting 10G/2.5G/1G).
- 8 × 25GE SFP28 ports (supporting 25G/10G/2.5G/1G).
- 2 × 100GE QSFP28 uplink ports (supporting 100G/40G).
- 1 × Extended subcard slot for future scalability.
- Switching Capacity: 1.568 Tbps (Terabits per second).
- Forwarding Performance: 1,167 Mpps (Million packets per second).
- MAC Address Table: Supports up to 64K entries.
- Routing Features: Layer 3 routing including Static, OSPF, and BGP protocols.
- Form Factor: Standard 1U rack-mountable chassis.
- Power Redundancy: 1+1 hot-swappable power supplies for continuous uptime.
- Maximum Power Consumption: Approximately 127W.
- Cooling: Smart, hot-swappable fans with automatic speed adjustment.
- iStack Technology: Combines up to 9 switches into a single logical device.
- Cloud-Managed: Full remote operation via the Huawei eKit app or cloud platform.
- Traditional Management: Supports CLI, Web-based GUI, and SNMP.
