Fire Alarm

4098-9789

Sensor Base with connections for Remote LED Alarm Indicator or Unsupervised Relay

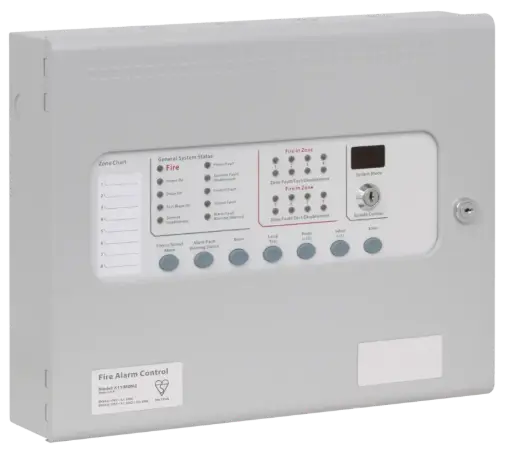

HFP-CP-4
Zones: 4 detection zones.
Compatibility: 100% compatible with the Hochiki conventional product range.
Installation: Surface-mounted, user-friendly, with easy, removable chassis for installation.
Power Requirements: Requires 2 x 12V / 2Ah or 2.1Ah batteries for backup.
Functionality: Offers robust "cause and effect" programming and can be used with repeater panels (HFP CP-R).
Options: Sometimes referred to as HFP CP-4TS or HFP CP-4KS.

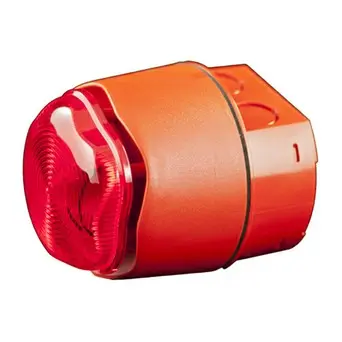

BEL-SBDB
Robust Design
Low Current Consumption
Easy to Install
Xenon Beacon Technology
Deep Base Provides IP66 Protection
Maximum 110 dB (A) @ 1 Meter
32 User Selectable Tones and 3 User Volumes

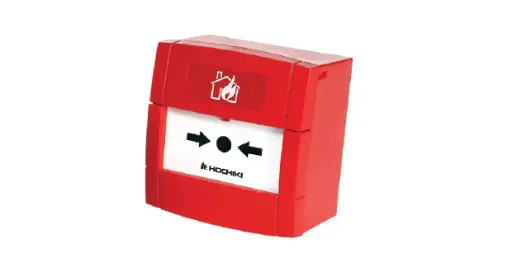

CCP-E

Operating Voltage: Typically ranges between 15 – 30 VDC.
Nominal Operating Resistance: Set at 470 Ω.
Maximum Contact Resistance: Rated at 200 Ω.
Ingress Protection: Rated at IP24 (indoor use).
Operating Temperature: Ranges from -10 °C to +55 °C (some documentation lists up to +50 °C).
Maximum Humidity: Operates in up to 95% RH non-condensing (at 40 °C).
Wiring Terminals: Push-fit terminals accommodate solid conductors up to 2.5 mm².

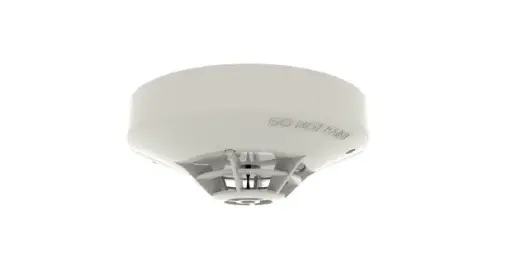

DCD-CE3
Operating Voltage: 9.5 – 30 V DC, allowing it to be installed on both fire and security systems.
Quiescent Current: 35 µA (typical).
Alarm Current: 40 mA (maximum).
Operating Temperature: -10°C to +50°C.
IP Rating: IP63.
Dimensions: 100mm diameter x 38mm height; weight of 76g.

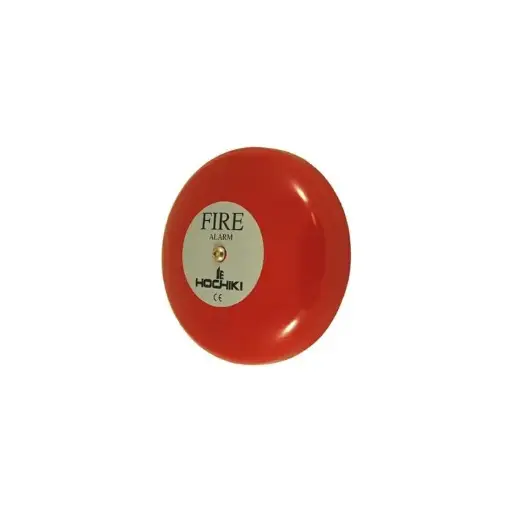

MBF-6EV

Sound Output: Typically produces 95–96.5 dB(A) at a distance of 1 meter.
Operating Voltage: Functions within a range of 20.4 – 27.6 Vdc.
Current Consumption: Features an extremely low current draw, rated at approximately 11mA.
Environmental Rating: Carries an IP23C ingress protection rating, making it suitable for indoor environments.

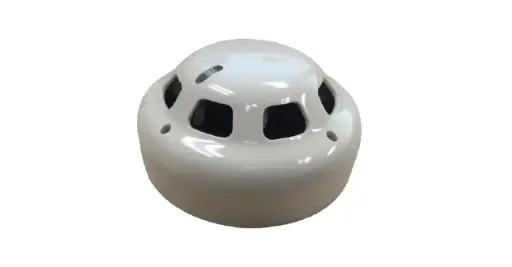

SOC-24V

Photoelectric Chamber: Features a computer-designed, non-directional smoke chamber for highly stable operation and high-quality detection.
360° Visual Indicator: A bi-colored LED provides a full 360° view of the detector's status: green for normal standby, flashing red for sensitivity drift, and steady red for alarm.
Automatic Sensitivity Testing: Includes a built-in verification function that meets NFPA 72 requirements for inspection and maintenance.
Flexible Compatibility: Compatible with 2-wire or 4-wire bases (such as the NS-4 and NS-6 series) and can be used in open areas or in-duct applications.

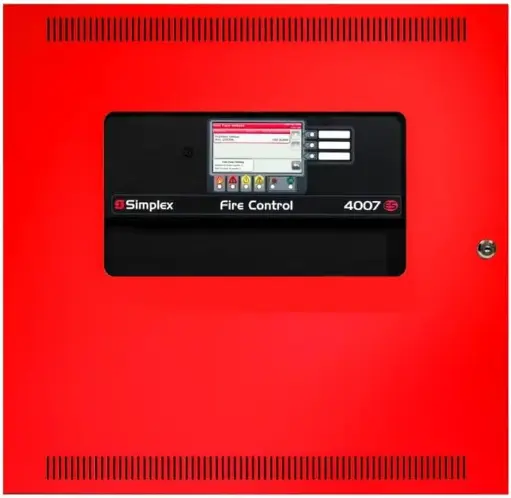

4007-9101
Sized right:The 4007ES is ideal for small to mid-sized buildings (100 to 250 points).
Suppression release support:The unit is agency-listed for multi-hazard suppression release applications.
Addressable performance: The 4007ES is compatible with Simplex TrueAlert ES self-testing, addressable notification appliances and TrueAlarm addressable sensors.
Flexible, addressable wiring infrastructure:Upgrading and expanding systems is easy and cost-effective.
Networkability: The 4007ES can network with other Simplex fire alarm control units and graphical workstations.
Easy, intuitive operation:A 4.3" (10.9 cm) color touchscreen makes it simple for anyone to operate.
Annunciator support:Users can add a matching color touchscreen annunciator offering a full-function, passcode-protected remote user interface with key switch control.

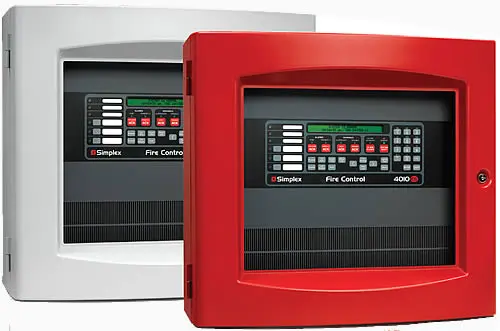

4010-9501
• Capacity for up to 1000 addressable IDNet points, or up to 1000
addressable MX Loop points and up to 127 VESDA SLI points,
with up to 2000 points of annunciation and up to 20 internal and
external card addresses
• CPU assembly includes dedicated Compact Flash memory for onsite system information storage and convenient Ethernet service
port access
• 8 A power supply with up to 2 A of auxiliary power and battery
charger capacity for up to 110 Ah batteries (UL) or up to 50 Ah
batteries (ULC); 33 Ah max in one bay control cabinet, 50 Ah max
with 4100-0650 battery shelf in two bay control cabinet
• 4 onboard Class A or B, 3 A NACs and one programmable auxiliary
relay output rated for 2 A @ 32 VDC
• Remote annunciator module support through Remote Unit
Interface (RUI) communications port, either Class B or Class A
operation
• A 32 RGY LED Control Unit mount annunciation with 32 color
programmable RGY LEDs

4098-9714
• Ceiling or wall mounting
• Listed to UL 268 7th Edition and ULC-S529
• Louvered smoke sensor design enhances smoke capture by directing
flow to chamber; entrance areas are minimally visible when ceiling
mounted
• Designed for EMI compatibility
• Magnetic testing
• Different bases support a supervised or unsupervised output relay, or
a remote LED alarm indicator

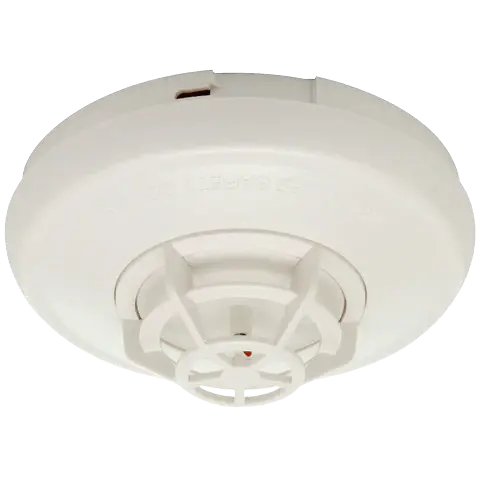

4098-9733

Communication as well as Sensor Supervisory Power IDNet or MAPNET II communications, auto-selected one address for each base
Communication Connections: Screw Terminals to out and in wiring between 18 and 14 AWG (0.82 mm2 to 2.08 mm2)
The current of the remote LED alarm indicator 1 mA typically, with no effect on current alarm
Alert LED Remote as well as Relay Connections Color-coded wire leads 18, AWG (0.82 millimeters)
Rate-of-rise temperature sensing
Utility temperature sensor
Operating Temperature Range:32deg to 122deg F (0deg to 50deg C)
Storage Temperature Range: 0deg F to 140deg F (-18deg C to 60deg C)
Humidity Range: 10 to 95% RH

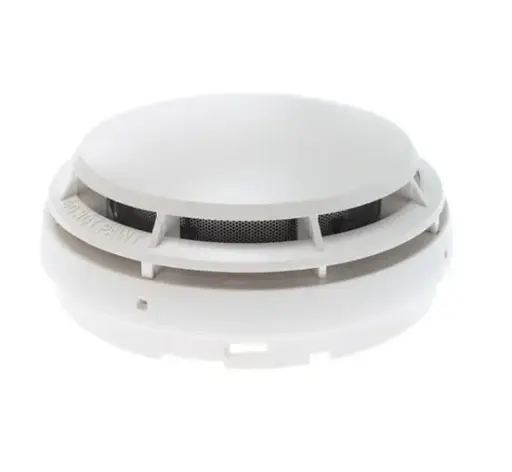

4098-9764

• TrueAlarm photoelectric smoke sensing and heat sensing combined
in one housing
• Smoke activity monitored by TrueAlarm photoelectric sensing
technology
• Thermal activity monitored by TrueAlarm thermistor sensing
technology
• TrueSense smoke activity and thermal activity fire detection

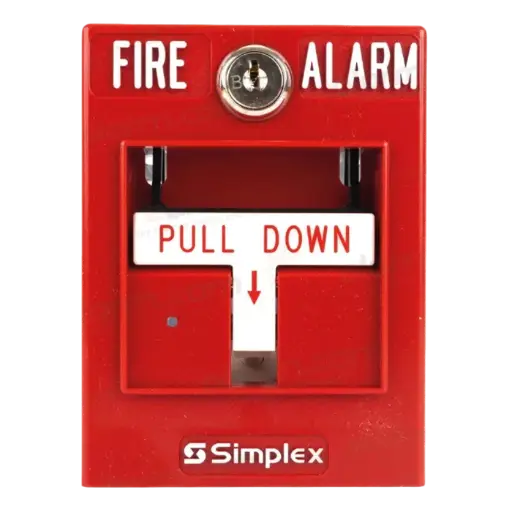

4099-9006

• Power and data supplied by IDNet or MAPNET II addressable
communications using a single wire pair
• Operation that complies with ADA requirements
• Visible LED indicator that flashes during communications and is on
steady when the station has been activated
• The NO GRIP Single Action Station and Retrofit Kit are available with
a more easily operated pull lever for applications where anticipated
users may find the standard station lever difficult to activate
• Pull lever that protrudes when alarmed
• Break-rod supplied (use is optional)
• Models are available with single or double action (breakglass or push)
operation
• UL listed to Standard 38

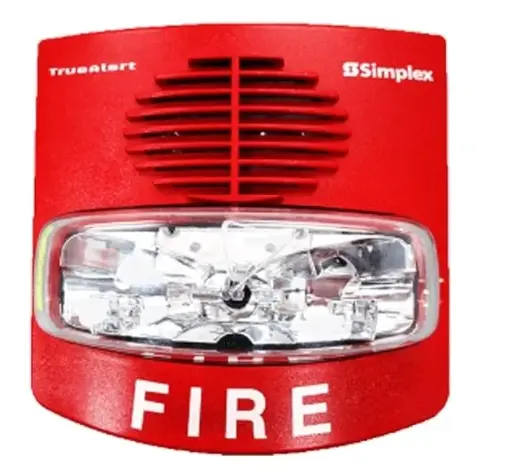

4906-9127

• Rugged, high impact, flame retardant thermoplastic
housings are available in red or white with clear lens
• The enclosure designs are
both impact and vandal resistant and provide a convenient
strobe intensity selection
• Wall mount or ceiling mount
