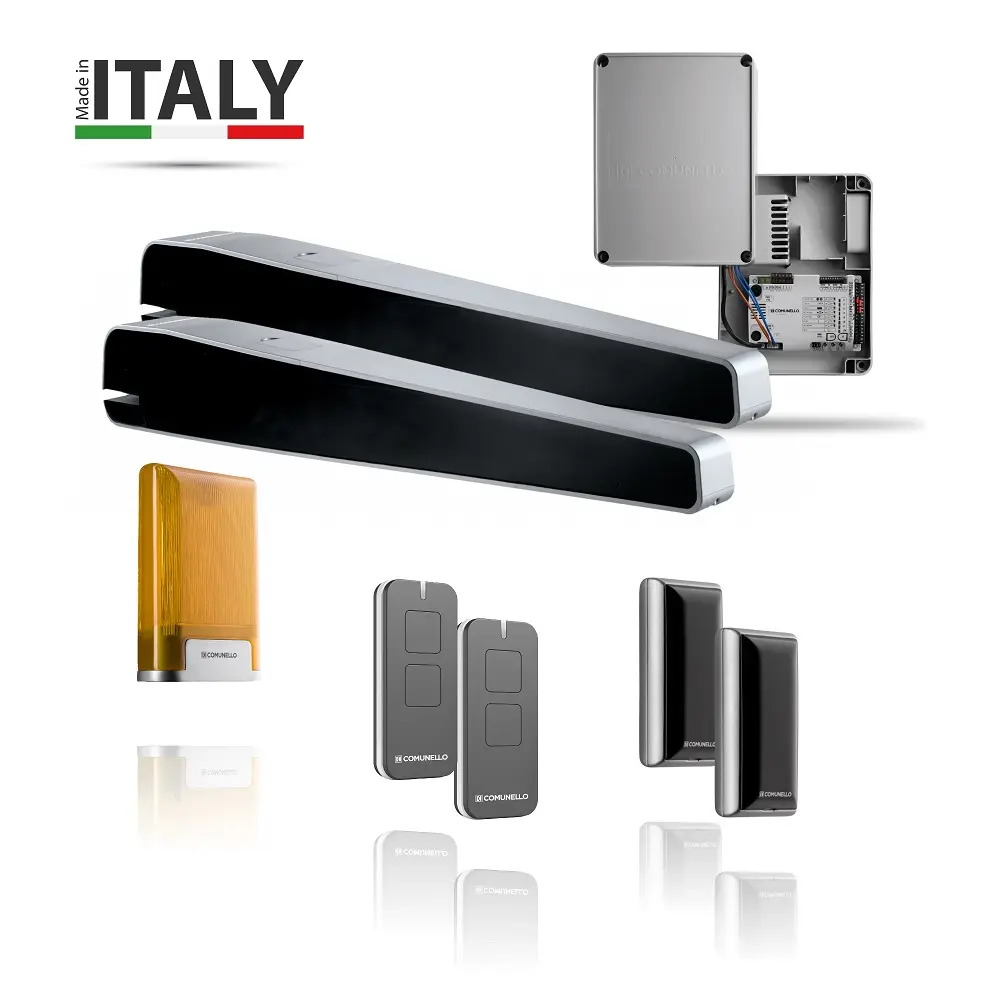

Comunello Abacus 500 Swing Gate Motor
Abacus 300
- Operating Limits:
- Max leaf length of 5 meters for gates up to 220 kg.
- Max leaf weight of 500 kg for shorter gates up to 2 meters.
- Power & Thrust:
- 24V Model: Consumes 110W with a maximum thrust of 1800 N.
- 230V Model: Consumes 280W with a maximum thrust of 2000 N.
- Speed: No-load speed is 21 mm/s for the 24V version and 16 mm/s for the 230V version.
- Duty Cycle: The 24V version is rated for intensive use, while the 230V version has a 50% duty cycle.
- Stroke: Features a standard stroke of 446 mm, significantly longer than the 300 series to handle wider gates.
