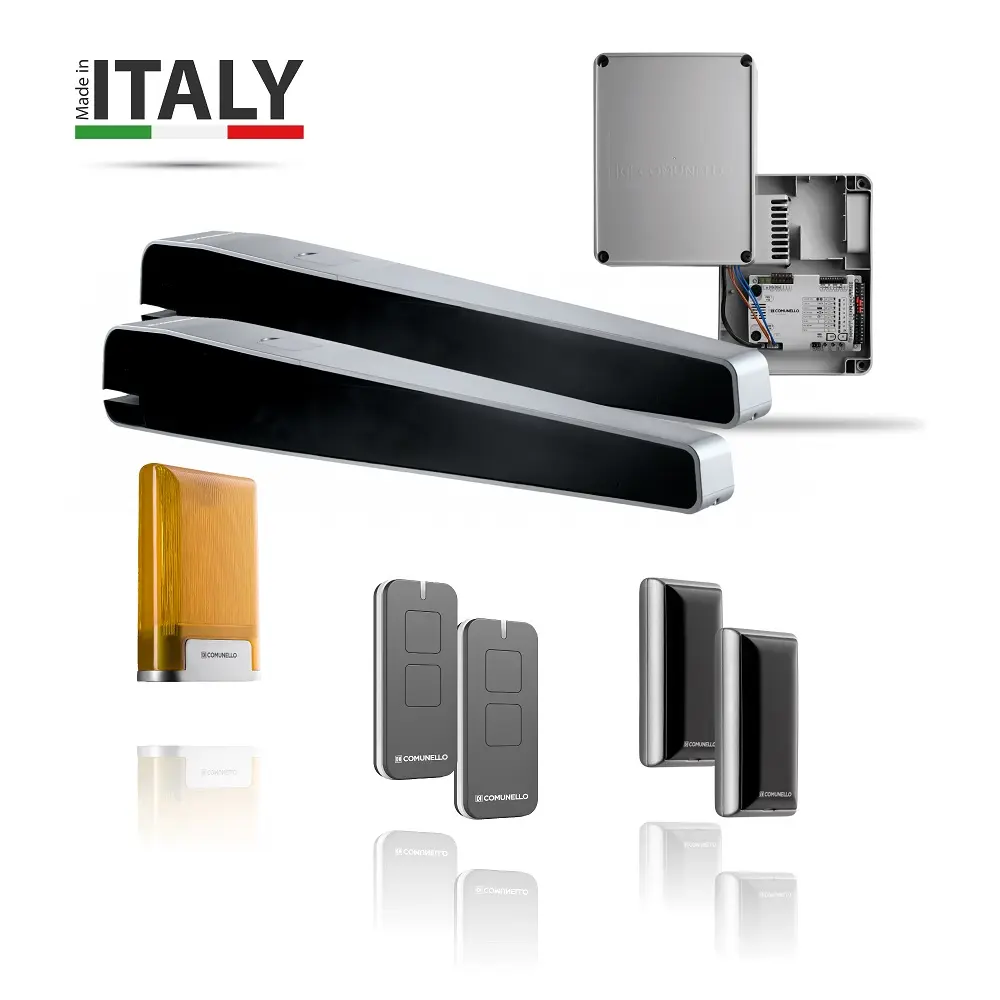

Comunello Abacus 300 Swing Gate Motor
Abacus 300
- Operating Limits: Designed for gate leaves up to 3 meters (max weight 300kg) or up to 500kg for shorter 1.5-meter leaves.
- Power Supply: Available in 24 VDC for intensive use or 230 VAC for standard residential use.
- Thrust: The 24V model provides up to 1800 N, while the 230V model offers up to 2000 N.
- Duty Cycle: 24V models are rated for intensive use, whereas 230V models typically have a 30% to 50% duty cycle.
- Protection Rating: Most models carry an IP44 rating, with some variants listed as IP24D.
- Speed: No-load speed is approximately 21 mm/s for 24V units and 16 mm/s for 230V units.
